Phenolic Duct Foam Aluminum Boards

Phenolic Pre-insulated Duct Panel with 60/80 micron Aluminum Foil

---

UNT Phenolic Pre-insulated Duct Panel with 60/80-micron aluminum foil is a high-performance building material, combining phenolic foam's excellent thermal and acoustic insulation with the protective properties of aluminum foil.

The 60/80-micron aluminum foil layer enhances moisture resistance, durability, and fire safety, while the phenolic core ensures low thermal conductivity (≤0.023 W/m·K) and lightweight installation.
Ideal for HVAC systems, it offers energy efficiency, corrosion resistance, and compliance with fire safety standards, suitable for commercial, industrial, and humid environments.

Technical Data Sheets

---



Item	Unit	Specification
Panel Structure		Alu.Foil/Phenolic Foam/Alu.Foil
Standard Width	mm	600/1200
Foam Thickness	mm	20-100
Alu. Foil Thickness	mm	0.04/0.06/0.08
Foam Density	kg/m3	40-60
Thermal Conductivity	w/m.k	0.023--0.025
Fire Safety		Class(0(BS476 part6&7) Class A(ASTM E84)
Compressing Strength	Mpa	0.2
Bending Strength	Mpa	2
Water Absorption	%	0.36
Dimension Change	%	0.3
Working Temperature	℃	-250 to +150
Maximum Allowable Wind Velocity	m/s	≤14
Continuous Running Maximum Temperature	℃	≤120
Closed Cell Rate	%	>95%
Lifespan of Phenolic Air Duct	years	>20



Why Choose UNT Phenolic Pre-insulated Duct Panel?​

---

1.Excellent Thermal Insulation Performance
Phenolic foam has a low thermal conductivity (typically ≤0.03 W/m·K), effectively reducing heat transfer and energy loss in HVAC systems.
2. Lightweight and Easy to Install
The panel is significantly lighter than traditional metal or concrete duct materials, reducing transportation costs and installation labor.
3. Fire Resistance and Safety
Phenolic foam is non-combustible and meets strict fire safety standards (e.g., Euroclass B-s1, d0 or UL 94 V-0), producing minimal smoke and toxic fumes when exposed to fire.
4. Moisture and Corrosion Resistance
The closed-cell structure of phenolic foam resists water absorption, preventing mold growth, rust, and degradation in humid environments.
5. Acoustic Insulation Properties
The foam structure dampens air-borne noise and reduces duct-borne vibrations, contributing to quieter indoor environments.
6.Durability and Long Service Life
Phenolic panels are resistant to chemical corrosion, aging, and mechanical damage, maintaining performance over decades without degradation.



Applications of UNT Phenolic Pre-insulated Duct Panels

---

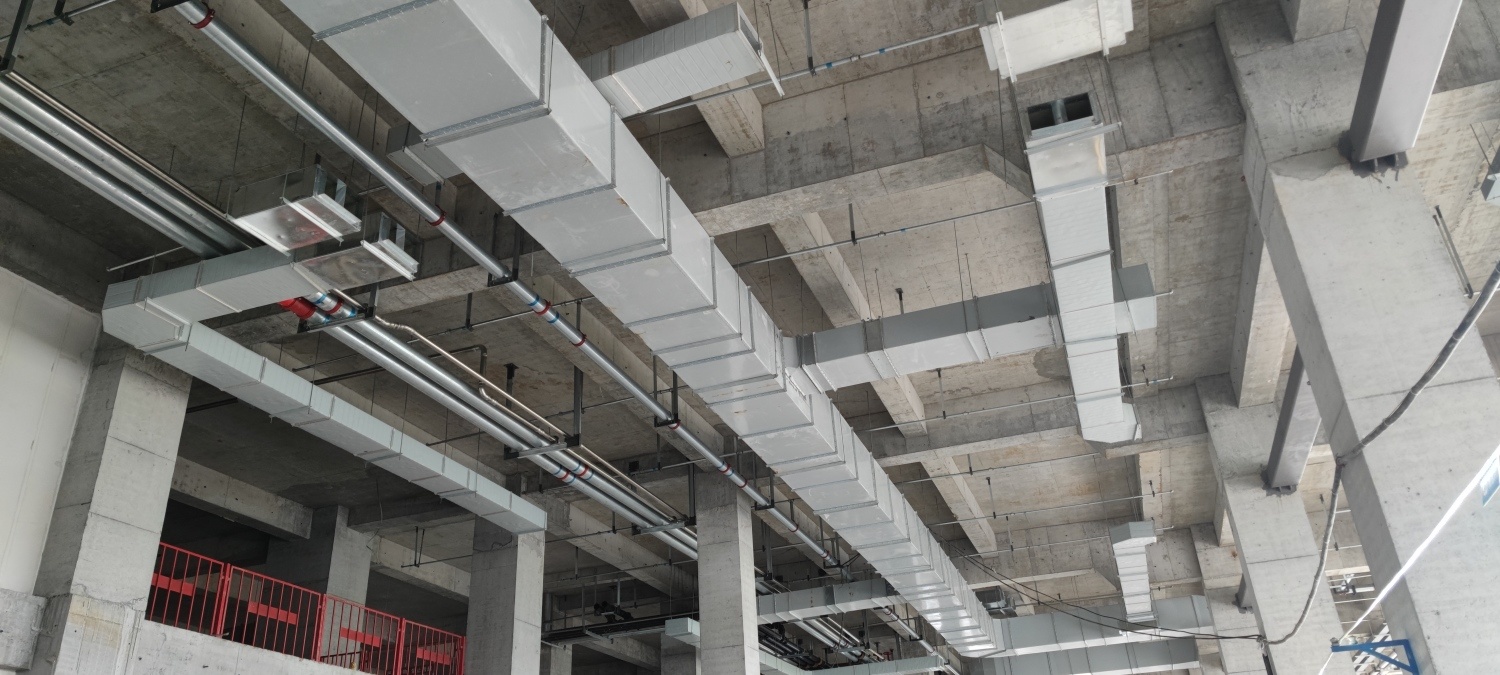

● HVAC Systems for commercial buildings, offices, and malls to ensure energy-efficient air distribution.
● Industrial Facilities like factories and warehouses, resisting corrosion and high humidity.
● Residential Buildings for quiet, insulated ductwork in apartments and homes.
● Healthcare & Food Industries due to their hygiene, fire resistance, and mold prevention.
● Marine & Transportation (e.g., ships, trains) for lightweight, fire-safe insulation.
● Outdoor Applications with aluminum foil cladding for weather protection.



Shipping&Packing

UNT Phenolic Pre-Insulated Air Duct Panel : length can be customized,width is fixed 1200mm,thickness is available from 20mm to 40mm, Usually it will be cut and packed as below details:

01 / 40’HQ Container:
3950*1200*20mm, 10 sheets packed in one carton, total is 3128.4㎡/660sheets
2900*1200*20mm, 10 sheets packed in one carton, total is 3062.4㎡/880sheets.



02 / 20’GP Container:
3950*1200*20mm,10 sheets packed in one carton, total is 948㎡/200sheets.
2900*1200*20mm, 10 sheets packed in one carton, total is 1392㎡/400sheets.

FAQ – Phenolic Pre-insulated Duct Foam Panel

---

Q1：How Can l Get A Samples And The Sample Cost?

A1：We would place an sample order via AlibabaTrade Assurance, it will be ready in about 3~5 working days after placing bluk order could credit the sample order for you.

Q2：How Many Colors Are Available?

A2：We have hot sell/traditional colors such asblack,silver, grey,and if pro vide the pantonecolors number we could produce accroding to your requirements.

Q3：What Type Of The Packaging To You Could Provide?

A3：We could porivde Cutsom Design Color Box.Instruction manual and insert priniting. And we could also provide standard box(White/Brown)or Egg Box packaging.

Q4：Can l customized My Product?

A4：Yes.we have OEM and ODM custom service. We could make mold if you provide the 3D rendering drawings.more over we could print your logo into products and provide color, packaging custom service.

Q5：What Is Your Term Of The Delivery?

A5：We provide EXW FOB DDP ClF.etc. You can choose one which is the most convenient or cost effecvtive for you.

Q6：When Is The Lead Time?

A6：For general bulk OEM or ODM order, it will cost 25-30 days.For inventory order, it will cost 7-10 days
