PIR Insulation Board with Fiberglass Tissue

15-80mm PIR Foam Wall/Roof Insulation Board With Fiber Glass

---

Product application scope：

1. Building wall and roof insulation board
2. Pipe line and ventilation pipe line insulation board
3. Solar insulation system
4. Building insulation system

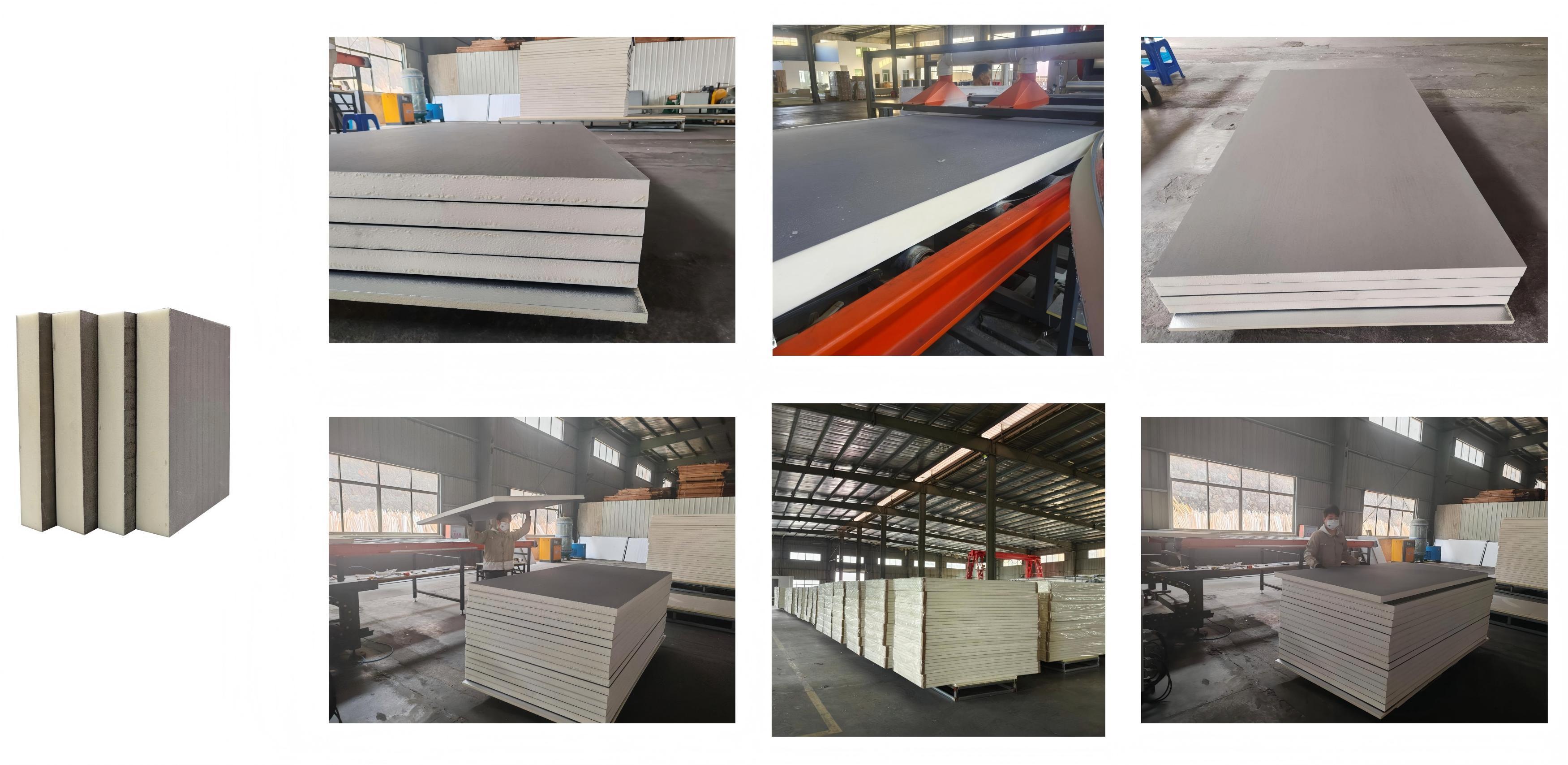

PIR Foam Insulation Board consist of Polyisocyanurate (PIR) foam insulation, faced on both sides with 0.6mm fiberglass tissue or 0.08mm aluminum foil. The standard width of UNT PIR Thermal Insulation Board is 1200mm or 600mm. The length can be customized. The PIR Insulation thickness and facing materials can be changed as per different application or project specifications. PIR Insulation Boards with fiberglass tissue offer a combination of excellent thermal performance, fire resistance, strength, and durability, making them a popular choice for energy-efficient and resilient building insulation solutions.

Technical Data Sheets

---



Item	Unit	Specification
Panel Structure		Fiber Glass/PIR Foam/Fiber Glass
Standard Panel Size(length,width)	mm	1200*600 or 600*600 or 2400*1200
Standard Panel Size(Thickness)	mm	15,20,25,30,40,50,60,70,75,80
Fiberglass Thickness	mm	0.06
Foam Density	ASTM D1622/D1622M-14	30-50kg/m3
Thermal Conductivity	ASTM C518-17	<=0.024 w/m.k
Compressing Strength	ASTM D1621-16	0.2 MPa
Bending Strength	DB34/T 3826-2021	2 MPa
Water Absorption	ASTM C209-15	≤3.0 % (volume fraction)
Dimension Change	%	70ºC 48h<=1.5% -30ºC 48h<=1.0%
Working Temperature	DB34/T 3826-2021	-100 to +120 ℃
Continuous Running Maximum Temperature	℃	≤70
Maximum Allowable Wind Velocity	m/s	12
Lifespan of Wall Insulation Board	years	20
Fire Safety (BS 476 Part 6 & 7 /ASTM E84)		Class 0/ Class A
CFCs and HCFCs	Headspace GC/MS	Free

Why Choose UNT PIR Foam Wall/Roof Insulation Board ?​

---

1.Superior Thermal Insulation
PIR foam has an extremely low thermal conductivity (usually <0.024 W/m·K), effectively reducing heat transfer and cutting energy consumption for heating and cooling.

2.Enhanced Durability and Strength
The combination of PIR foam core and fiber glass layers provides excellent mechanical strength, resisting impacts, compression, and deformation, ensuring long - term structural integrity.

3.Moisture and Mold Resistance
The closed - cell structure of PIR foam and the moisture - resistant fiber glass facings prevent water absorption, inhibiting mold growth and maintaining insulation performance in humid conditions.

4.Fire Safety
Fiber glass facings improve fire resistance, reducing flammability and limiting the spread of flames. The board can meet various fire safety standards.

5.Sound Insulation
Effectively absorbs and blocks sound waves, reducing noise transmission, which is ideal for creating quiet indoor environments.

6.Lightweight and Easy Installation
Despite its strength, the board is lightweight, simplifying handling, transportation, and installation, saving labor and time costs.

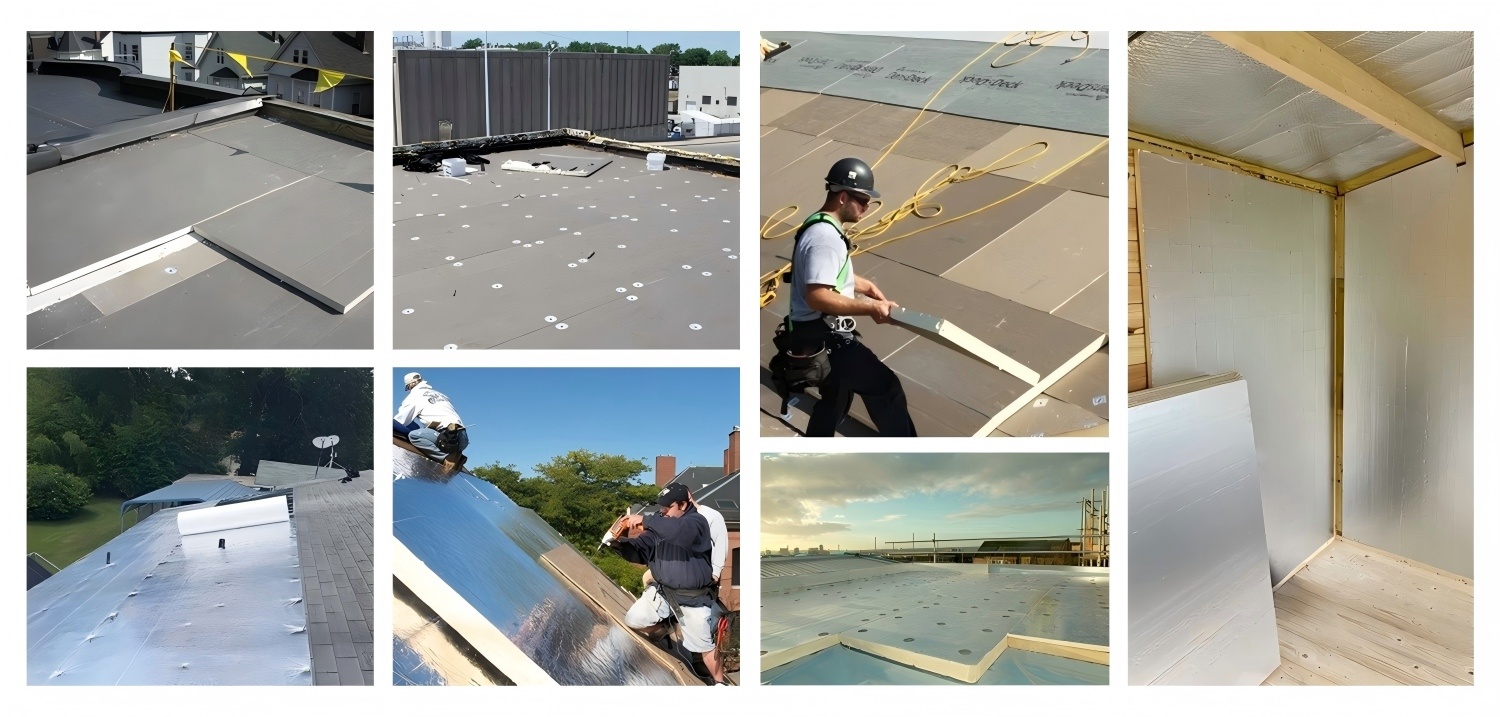

Applications of UNT PIR Foam Wall/Roof Insulation Board

---

1.Residential Buildings
Used for exterior and interior walls in houses and apartments to improve energy efficiency, comfort, and noise reduction.

2.Commercial and Industrial Structures
Applied in office buildings, factories, warehouses, and cold storage facilities to enhance thermal insulation and maintain stable indoor temperatures.

3.Renovation Projects
Suitable for retrofitting existing buildings to upgrade insulation performance without major structural changes.

4.Roof Insulation
Can be used on flat or pitched roofs, providing thermal and sound insulation while protecting against weather elements.

5.Transportation Industry
Applied in the insulation of trucks, trailers, and refrigerated vehicles to maintain temperature - controlled environments during transit.

FAQ

---

Q1：How Can l Get A Samples And The Sample Cost?

A1：We would place an sample order via AlibabaTrade Assurance, it will be ready in about 3~5 working days after placing bluk order could credit the sample order for you.

Q2：How Many Colors Are Available?

A2：We have hot sell/traditional colors such asblack,silver, grey,and if pro vide the pantonecolors number we could produce accroding to your requirements.

Q3：What Type Of The Packaging To You Could Provide?

A3：We could porivde Cutsom Design Color Box.Instruction manual and insert priniting. And we could also provide standard box(White/Brown)or Egg Box packaging.

Q4：Can l customized My Product?

A4：Yes.we have OEM and ODM custom service. We could make mold if you provide the 3D rendering drawings.more over we could print your logo into products and provide color, packaging custom service.

Q5：What Is Your Term Of The Delivery?

A5：We provide EXW FOB DDP ClF.etc. You can choose one which is the most convenient or cost effecvtive for you.

Q6：When Is The Lead Time?

A6：For general bulk OEM or ODM order, it will cost 25-30 days.For inventory order, it will cost 7-10 days
